AWS Sagemaker Studio Resource Isolation & Authentication via Azure AD


Every person logging in to AWS Sagemaker has access to all the Sagemaker domains and resources. They can even launch the Jupyterserver app using any user profile and edit/delete the files created by another user. By implementing SSO, users can log in to Sagemaker using Microsoft 365 credentials only. They will have access to only those resources which are shared with them.


Federated authentication to Sagemaker Studio through Azure AD by implementing SSO with resource isolation.

demand forecast


demand forecast

Azure Active Directory will be configured as an external IDP in AWS IAM Identity Center (successor to AWS SSO). IAM Identity Center supports automatic provisioning (synchronization) of user and group information from Azure AD into IAM Identity Center using the System for Cross-domain Identity Management (SCIM) v2.0 protocol.

Then, the domains in Sagemaker Studio will be created using Standard Setup so that relevant groups of users can be assigned. The users will be able to see only those Sagemaker SSO domain apps to which they have been assigned. This will establish domain-level isolation.

demand forecast

The domain tile shown above will create a unique user profile and will launch a JupyterServer application using it. So, each such application will have an isolated Amazon EFS directory. Every time same user profile will be used for that user. Hence, users will not be able to view/edit other’s resources. For sharing notebooks or models, Git or Sagemaker studio functionality will be used.

demand forecast

Every user profile can be assigned an execution role that performs operations on the user’s behalf on the AWS hardware that is managed by SageMaker. This execution role can be used to restrict access to a specific S3 bucket or to restrict the creation of some large instance types. Two such policies have been attached to this document.

One option is using the Sagemaker role wizard to restrict carious ML activities. It provides 3 personas templates that can be customized as per needs. Those personas are: Data Scientist, MLOps, and Compute persona. Details are discussed later in this document. This execution role will have to be attached to every user profile manually once they have logged in.


Using SSO for logging in to the sagemaker resources should be the only way. Access to Sagemaker via console would need to be revoked. If a user has access to Sagemaker via the management console, he will be able to access everyone’s resources from there.

In order to give full access to a small cohort (admins), we can use permission sets in the IAM Identity canter to give sagemaker full access via console. For this, a permission set needs to be created in the AWS IAM Identity center with Sagemaker full access and assigned to relevant users in AWS organization. After the assignment, those users will see another tile as shown in the below screenshot. It will give them access to Sagemaker console.

User Personas

AWS Sagemaker role manager can be used to make roles for different personas. Amazon SageMaker Role Manager provides predefined permissions for the following ML activities:

demand forecast

Amazon SageMaker Role Manager provides suggested permissions for 3 ML personas:

Data scientist persona

This persona includes the following preselected ML activities:

  1. Run Studio Application
  2. Manage ML Jobs
  3. Manage Models
  4. Manage Experiments
  5. Search and Visualize Experiments
  6. Amazon S3 Bucket Access

Policies attached in this role by default are -

MLOps persona

This persona includes the following preselected ML activities:

  1. Run Studio Application
  2. Manage Models
  3. Manage Endpoints
  4. Manage Pipelines
  5. Search and Visualize Experiments

Policies attached in this role by default are -

demand forecast

SageMaker compute persona

This persona includes the following preselected ML activity:

  1. Access Required AWS Services

Policies attached in this role by default are -

demand forecast

Policies JSON for the above personas can be found in sub-pages of this document.


Part 1: AWS SSO — Configure Azure Active Directory as external IDP

Step 1:

To configure the integration of AWS IAM Identity Center into Azure AD, first we need to add AWS IAM Identity Center (AWS SSO) from the gallery to the list of managed SaaS apps.

  • Sign into the Azure portal using Microsoft account.
  • On the left navigation pane, select the Azure Active Directory service.
  • Navigate to Enterprise Applications and then select All Applications.
  • To add new application, select New application.
  • In the Add from the gallery section, type AWS IAM Identity Center in the search box.

demand forecast

  • Select AWS IAM Identity Center from results panel and then add the app. Wait a few seconds while the app is added to your tenant.
  • Leave this tab open in your browser while proceeding to the next steps.

Step 2:

  • Go to AWS SSO
  • In the left navigation pane, choose Settings.
  • On the Settings page, find Identity source, click on Actions pull-down menu, and select Change identity source.

demand forecast

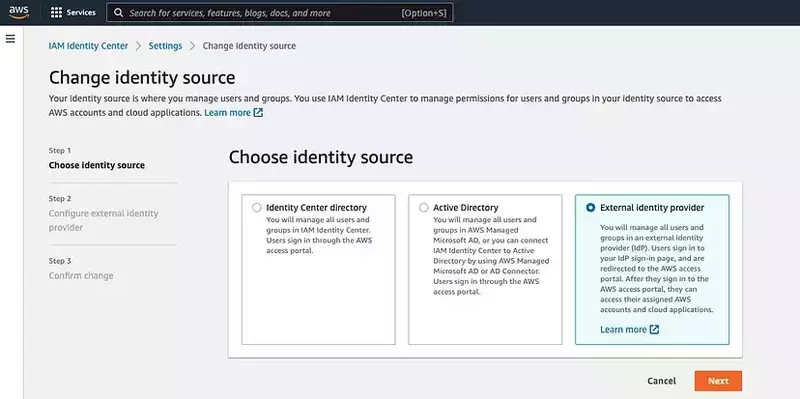

  • On the Change identity source page, choose External identity provider.

demand forecast

  • In the Service provider metadata section, find AWS SSO SAML metadata, select Download metadata file to download the metadata file and save it on your computer and use this metadata file to upload on Azure portal.

  • Copy AWS access portal sign-in URL value, it will be used in below in point 5 step 3 to paste this value into the Sign on URL text box in the Basic SAML Configuration section in the Azure portal.

  • Leave this tab open in your browser while proceeding to the next steps.

Step 3:

  • In the Azure portal, on the AWS IAM Identity Center application integration page, find the Manage section and select single sign-on.
  • On the Select a single sign-on method page, select SAML.
  • On the Basic SAML Configuration section, Click Upload metadata file and upload the file downloaded in Step 2 (5th point).
  • On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
  • In Basic SAML Configuration section paste values received from 6th point step 2.
  • On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

demand forecast

  • Return to the tab used in step 2 — the IAM identity center.
  • In the Identity provider metadata section, select Choose file to upload the metadata file which you have downloaded from the Azure portal. (6th point Step 3)
  • Choose Next: Review.
  • In the text box, type ACCEPT to change the identity source.
  • Click Change identity source.

Step 4:

  • In AWS SSO, enable automatic provisioning.
  • Get SCIM endpoints and token.
  • In Azure portal, open application, go to provisioning, setup automatic provisioning using above endpoints.

Provision on-demand can also be used if addition of new users/groups is a rare occurance.

Part 2: Create groups of users to be assigned to same domain

Step 1:

  • Go to Azure Active Directory, create groups for each team.

Step 2:

  • Go to the Enterprise application created in part 1. Select Users and groups

Select Add user/group and add the groups created in pervious pointer.

Step 3:

If automatic provisioning is enabled, these assigned users or groups will reflect in AWS IAM Identity Center within an hour. Else, on-demand provisioning can be done to get new users/groups immediately in the AWS IAM Identity Center.

Part 3: All domains to be created using standard setup

The domains to be created now needs to be created using Standard setup.

  • In AWS Sagemaker when a domain is created, 2 options appear as:

demand forecast

Choose Standard Setup as we are using IAM Identity Center (successor to AWS SSO)

  • In the next screen, in Authentication choose AWS IAM Identity Center.

demand forecast

  • In Permissions section, choose the default execution role. This default role can be the one created using Sagemaker Role manager.

  • And remaining configurations will remain same.

Part 4: Give domain access to relevant users/groups

  • In AWS Sagemaker, go to domain details and Groups section.

demand forecast

When the user logs into the IAM Identity Center portal, they see a tile for this Studio Domain. Choosing that tile logs them into Studio with their assigned user execution role. Every user will see tiles for only those domains to which they have been assigned.

demand forecast

Part 5: Create different user personas

As already discussed, custom user personas can be created or Sagemaker-provided personas can be used.

Part 6: Assign user persona to every user profile

Step 1:

  • To assign IAM Identity Center users to your Studio Domain, choose Assign users and Groups in the Studio control panel. On the Assign users and groups screen select your data scientist user, and then choose Assign Users and Groups.
  • After the user is added to the Studio control panel, choose the user to open the user details screen.
  • On the User details screen, choose Edit.
  • On the Edit user profile screen, under General settings, modify the Default execution role to match the user execution role you’ve created for your data scientists.
  • Choose Next through the rest of the settings pages and choose Submit to save your changes.

When the data scientist or other user logs into the IAM Identity Center portal, they see a tile for this Studio Domain. Choosing that tile logs them into Studio with their assigned user execution role.
